Dimensions

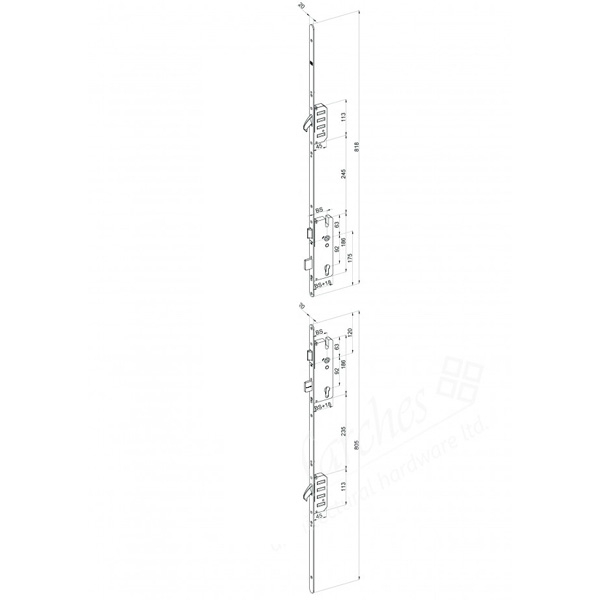

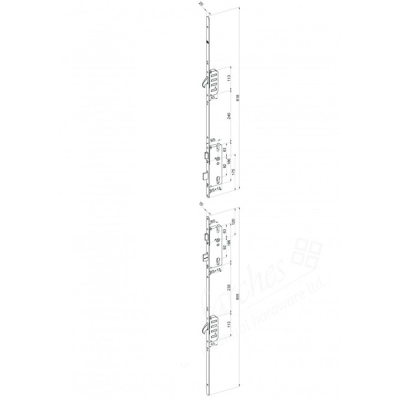

(See Diagram).Backset: 45mm
ORDER KEEPS SEPARATELY (see related product below)
Optional Interlocking Catch Available - See related products
Winkhaus Product Ref: 4966588 (Upper) & 4966587 (Lower)
Description
A purpose made door locking system with two completely separate locks rather than a mismatched combination of other locks.Supplied as standard with a substantial 20mm faceplate to allow for increased machining tolerances.
High strength centre gearbox to reduce the risk of malicious abusive loads.
25mm throw tapered plated steel hooks for optimum security, ease of operation and weather performance. Non-handed locks to avoid incorrect factory or site manipulation. 20mm wide radius end faceplate to suit popular routing techniques. Lever Lever operated top lock. Key operated bottom lock fitted with a roller latch for convenient ease of use.
Radius end steel keeps with ± 2mm adjustment.
Lock and keeps plated to Grade 4 corrosion resistant to BS EN1670 European Standard.
Sprung latch and nickel plated steel deadbolt provides maximum strength in the centre of the door.
Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle ‘droop’. Locks accept industry standard 92pz handle sets or separate lever rose furniture.
| Type | 45mm Backset |
|---|
