Dimensions
• 45mm backset with a 20mm wide faceplate. See diagram for dimensions.
Can be used for single doors or as part of the French door lock system.
Ideal solution for short doors. A 1870mm minimum door height can be achieved with a handle height of 1050mm. Shorter doors can also be achieved but this would reduce the handle height.
Can also be used for taller doors with the addition of master extensions (20775/5), slave extensions (20775/4), shoot bolts (20775/2 & 20775/3) etc (See related products).
Also known as Viper or Ventas. Part of the french lock system in related products.
Description

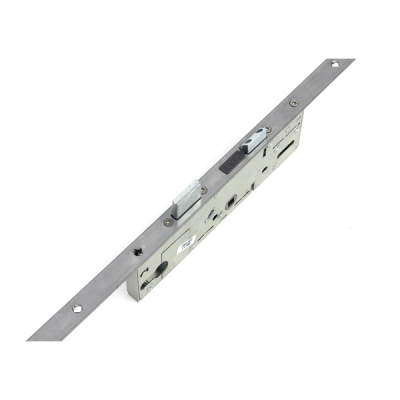

Non-handed locking mechanism with easily reversible centre latch to minimise stock requirements. Snib facility as standard on all locks.
Twin linear tapered bolts with an 18mm throw, lock into steel keeps offering resistance to forced entry.
Accepts standard 92mm handles and europrofile cylinders.
Tested to the latest security and performance standards the 2 Linear Bolt lock meets the requirements of PAS 24:2012. The lock meets the requirements of BS EN 1670:2007 Grade 4 (240 hours) for Corrosion Resistance to provide the most robust finish and has also been performance tested in our to 50,000 cycles.
Comes with a 10 year mechanical guarantee.
| Finish | SS |
|---|---|
| Size | 45mm Backset |
| Type | Master Lock |
