Dimensions
Length: 2240mm but capable of replacing locks down to 1300mm.Backset: 45mm
Centres: 92mm
Grove Detail: 20mm
Finish: Silver Passivated
Faceplate End: Square
Winkhaus Product Reference: 4981962
Ideal multipoint door lock for short doors.
Description
Based on the successful Thunderbolt™ Locking system the lock has substantially more tolerance for door fitting and could help reduce both fitting time and costly errors on site. Twin tapered deadbolts make the door easy to close and lock whilst providing excellent draught sealing and weather protection.
Designed as a universal repair lock which can replace most other brands of multipoint lock with minimal or no extra routing work.

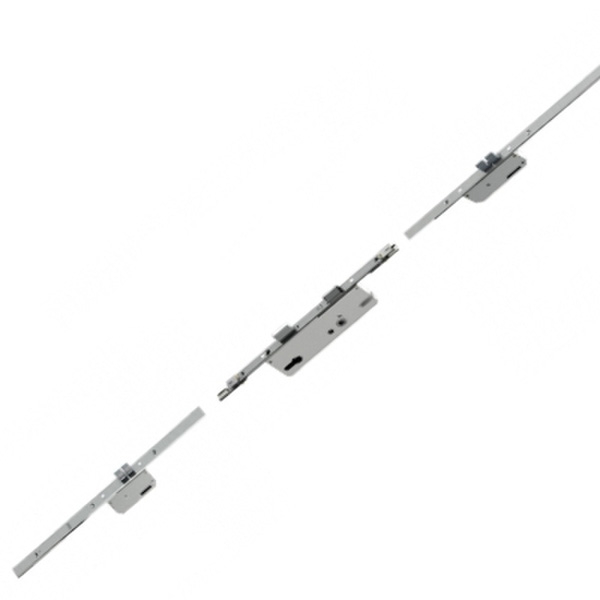

Supplied in three parts (central gearbox, upper and lower extensions) for maximum flexibility, the extensions can be cropped to fit the existing door sash machining preps without any additional routing but in some cases minimal work may be required.
Features a high performance, strengthened centre gearbox. Tested to PAS24 and Secured by Design approved.
| Type | 45mm Backset |
|---|
