Stock Code: 31246
1 In Stock for despatch
Dimensions

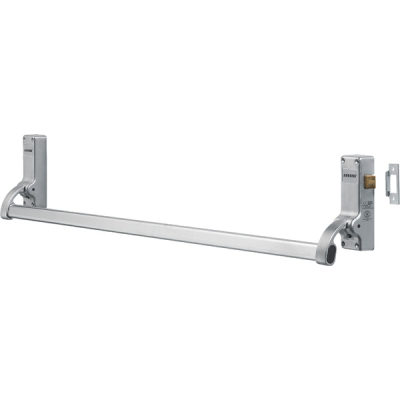

Designed for single and double door applications.The unit is operated by a downward thrust of the cross bar to give a speedy exit in panic situations. A
n adapter for use with a rim cylinder for outside access is supplied as standard.
Description
Maximum door width: 1220 mmMaximum door weight: 200 kgs
Fixing: Timber fixing screws supplied (Steel door fixings and strike plates available separately)
Testing: BS EN 1125:2008 (Classification 3 | 7 | 6 | B | 1 | 4 | 2 | 2 | A | A ); BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.
CE Marked: Certificate: 1121-CPR-AAA005; Certifire approved: CF810; DoP: HUK0022
Note: In accordance with the scope of EN 1125, doors up to 1300 mm width are covered by the standard. Doors wider than this will not be covered by the standard and the test evidence gained.
Material: zinc
Finish: satin nickel plate
Body material: zinc
Door type: wooden door
Fixings: wood screws
Locking points: 1-point, latch type lock
Max door width: max 1220 mm
| Finish | Silver |
|---|
