Dimensions
Material: zincFinish: black
Body material: zinc
Door type: wooden door
Fixings: timber door
Locking points: 2-point locking, anti-thrust
Max door width: max 1220 mm
Max door height: max 2440 mm
Description

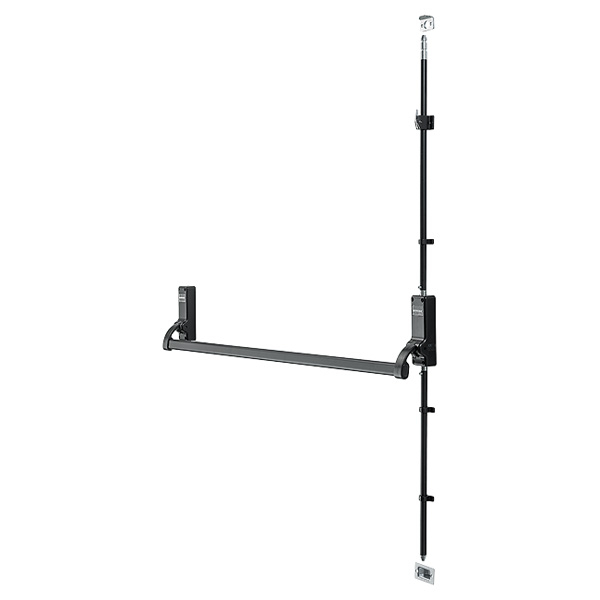

Single panic bolt:
• Maximum door height: 2440 mm (extra length vertical rods available for doors up to 3240 mm high)
• Maximum door width: 1220 mm
• Maximum door weight: 200 kgs • Fixing: Timber fixing screws supplied (Steel door fixing packs available separately)
• Supplied with "Push Bar To Open" signage
• Testing: BS EN1125: 2008 (Classification 3 | 7 | 6 | B | 1 | 4 | 2 | 2 | A | A ), BS EN 1634 Part 1: Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors
• CE Marked: AAA005, UKCA Marked: AAA7651
• Certifire approved: CF810, CE DOP: HUK0022, UKCA DOP: HUK0022-UK
• Note: In accordance with the scope of EN 1125, doors up to 2500 mm high and 1300 mm width are covered by the standard. Doors taller or wider than this will not be covered by the standard and the test evidence gained.
| Finish | Black |
|---|
