Dimensions
H x W x T - 102mm x 76mm x 3mmFinish: Grade 201 Satin Stainless Steel
Features:
Suitable for external joinery
Maintenance-free / self-lubricating
BS EN1634 fire tested FD30, FD60, FD90 and FD120 on timber
BS EN1634 fire tested FD240 on steel
Grade 14 for doors up to 160kg / BS EN1935 tested to 200,000 cycles
160kg with 1.5 Pairs
CE 2812, UKCA 1121, Certifire CF336
12 gauge countersunk
Supplied with 12 x 1 1/2" Pozi Drive 3/4" threaded screws
Frisco - 14929
Description

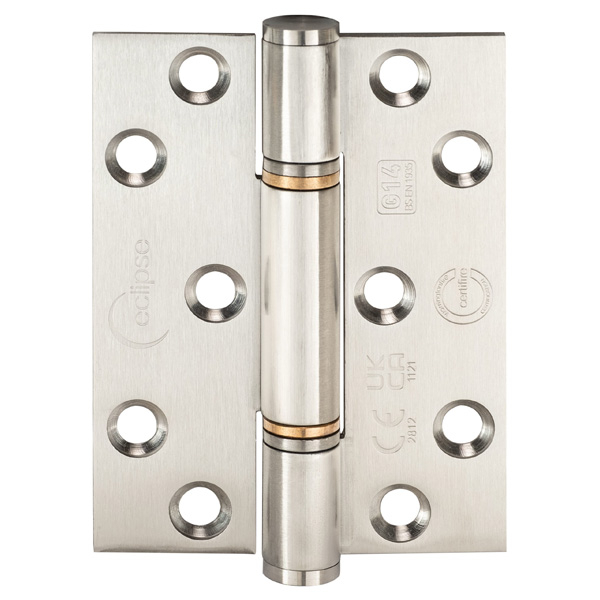

This is a high quality grade 201 stainless steel thrust bearing hinge, recommended for use with external applications. The hinge incorporates thrust bearings as well as phosphor bronze washers, rather than ball bearings, making it self-lubricating and maintenance-free.
The hinge complies with BS EN 1935 Grade 14 and is suitable for doors up to 160kg (with 3 hinges) as well as being tested to 200,000 cycles. The hinge is also tested to BS EN 1634 and is fire tested to FD120 on timber and FD240 on steel application. It Also complies with Certifire CF336 and is CE marked.
Sold in pairs with screws.
| Finish | Satin SS Grade 201 |
|---|---|
| Size | 4" |
