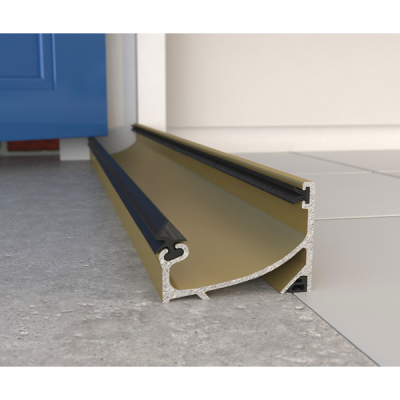

Description
For outward opening doors
Under door clearance 24mm
Suitable for exposed locations
Ideal for double doors.
Channel accepts the Striker Block enabling flush bolts to be used with this product.
Polypropylene pile ensures an effective draught seal against the internal face of the door.
Fitting Instructions:
Remove bristle and rubber seals from aluminium sill section. Check width between inside faces of the door frame rebate and cut aluminium section to this size. (See Illustration)
Cut the seals with scissors to the length of the aluminium and re-insert them into grooves in the sill.
This sill requires an under door clearance of 24mm. If necessary, remove door and trim to allow for this ensuring bottom of door is smooth.
Position the assembled sill between the door frame and mark fixing points through countersunk holes. Remove sill, drill fixing holes and insert plugs.
Apply sealing compound to underside groove at front of sill. Ensure rubber seal at rear is in place and screw sill into place.
No detailed specifications are available for this group.
No attachments are available for this group.
No video available for this group.
